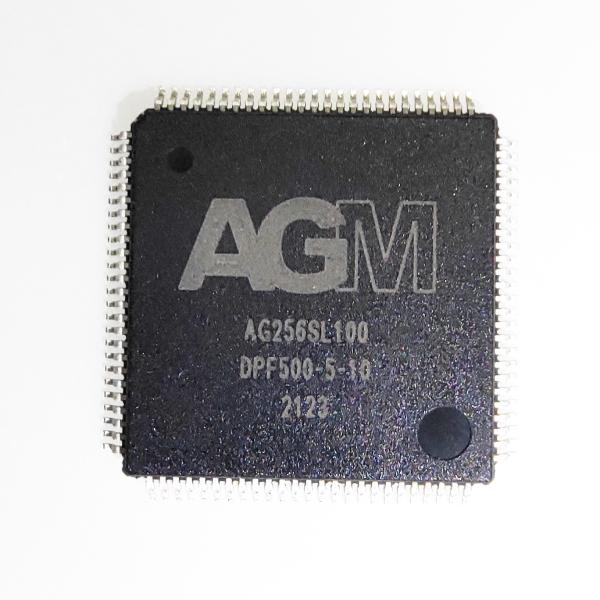

AG256SL100 是一款超低成本的CPLD,逻辑资源有256个宏单元,可以替代ALTERA的EPM240T100,价格远低于其他品牌同等资源的FPGA器件。
Features
● Low-Cost and low-power CPLD
● Instant-on, non-volatile Compatible FPGA architecture.
● Up to 4 global clock lines in the global clock network that drive throughout the entire device.
● Provides programmable fast propagation delay and clock-to-output times.
● Provides PLL per device provide clock multiplication and phaseshifting (AG256 has no PLL).
● UFM supports non-volatile storage up to 256 Kbits.
● Supports 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic level
● Programmable slew rate, drive strength, bus-hold, programmable pull-up resistors, open-drain output, Schmitt triggers and programmable input delay.
● Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry complaint with IEEE Std. 1149.1-1990
● ISP circuitry compliant with IEEE Std. 1532
● 3.3-V, 2.5-V, 1.8-V, 1.5-V LVCMOS and LVTTL standards
● Emulated LVDS output (LVDS_E_3R)
● Emulated RSDS output (RSDS_E_3R)
● Operating junction temperature from -40 to 100 ℃
● General package options, LQFP100.

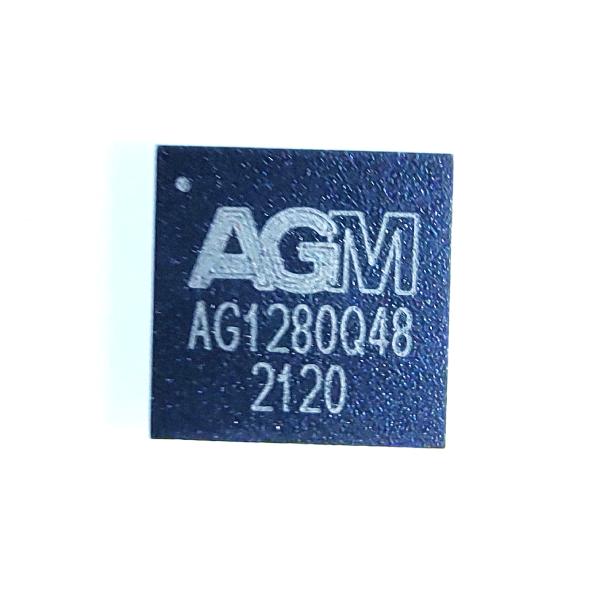

上一篇:AG1280Q48

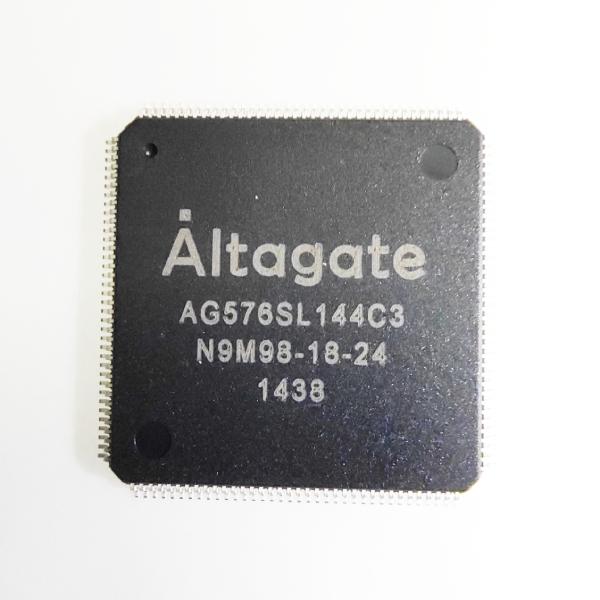

下一篇:AG576SL144
